Euromechanics medical has developed and manufactured ion chambers for few customers since many years in large quantities and is well experienced in this field.
The chambers are designed after established recommendations to chamber volume and geometry and provide best accuracy and long term stability.
The chambers are calibrated at the Calibration Lab in Seibersdorf/ Austria, BNT and TNC connectors are available.
The ionization chamber EIC400 is a Farmer type therapy ionization chamber for absolute dosimetry with measuring volume of 0.6 cc. The wall is made of graphite and the electrode of aluminium. The chamber volume is vented through the cable connector. EIC400 is delivered with a build-up cap and calibration certificate; available connector types are triaxial TNC or BNT.
Intended use:
- Absolute Dosimetry in high energy photon and electron beams
- For use in solid plastic phantoms or in air
The ionization chamber EIC300 is a Farmer type therapy ionization chamber for absolute dosimetry with measuring volume of 0.6 cc. The wall made of POM and the aluminum electrode makes the chamber rugged for everyday use. The chamber volume is vented through the cable connector. EIC300 is delivered with a build-up cap and calibration certificate; available connector types are triaxial TNC or BNT.
Intended use:
- Absolute Dosimetry in high energy photon and electron beams
- For use in water, solid plastic phantoms or in air

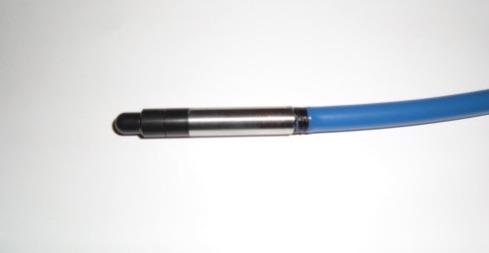

The ionization chamber 'miniSphere' therapy ionization chamber is designed for relative and absolute dosimetry with measuring volume of 0.125 cc. It is ideal for use in water phantoms as the chamber response is almost spherical. The wall is made of Shonka and the electrode of aluminium. The chamber volume is vented through the cable connector. miniSphere is delivered with calibration certificate; available connector types are triaxial TNC or BNT.
Intended use:
- Relative Dosimetry in high energy photon and electron beams
- For use in solid plastic phantoms, water or in air
