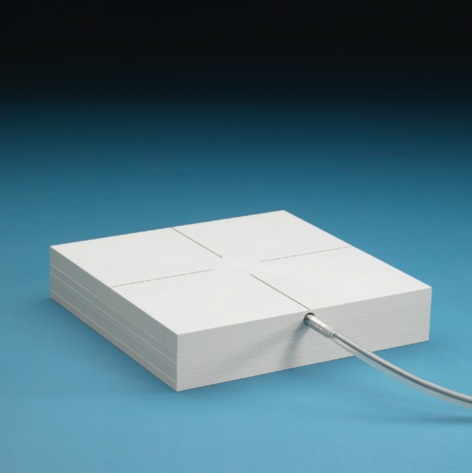

EASY SLAB is a set of slab phantom plates for daily absolute dosimetry of high energy electron or phaon beams.
It consists either of acrylic or water equivalent RW3 (Goettingen Röntgen Water 3) material.
The plates are machined with a tolerance of ± 0,1 mm and available in thicknesses of 1, 2, 5 and 10 mm. So the measuring depth can be varied in increments of 1 mm.

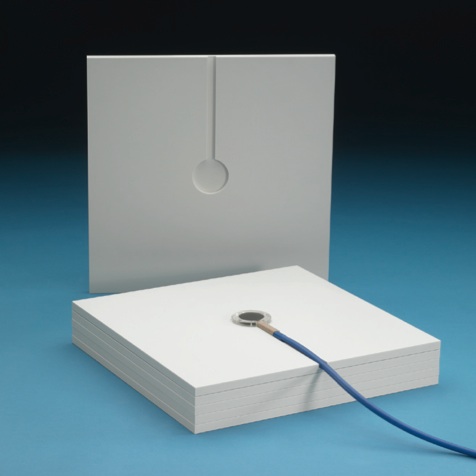

Chamber adapter plates are available for almost all chambers on the market.
Adapter plates can be manufactured on request within few weeks time.
Slab phantom plate footprint: 30 x 30 cm
Total hight of stacked plates: 30 cm
EASY SLAB consist of: 29 x 10mm plates, 1 x 5 mm plate, 2 x 2 mm plates, 1 x 1mm Plate
The transportation and storage box is included.
Useful energy range:
Aycylic: Photons 70 kV - 50 MV
Electrons 1 MeV - 55 MV
RW3: Photons 60 Co - 25 MV
Electrons 4 MeV - 25 MV
