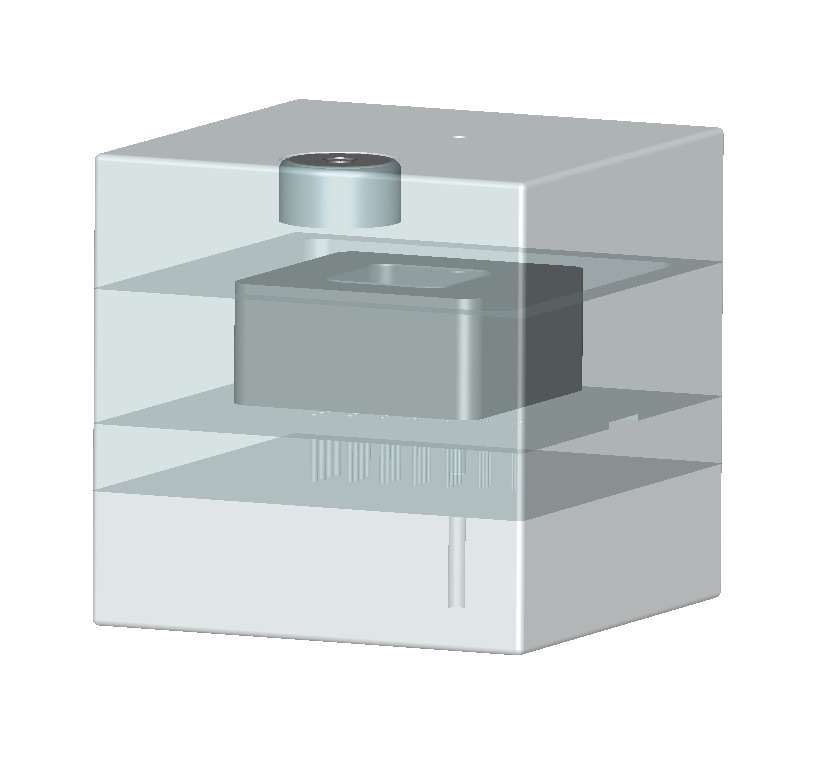

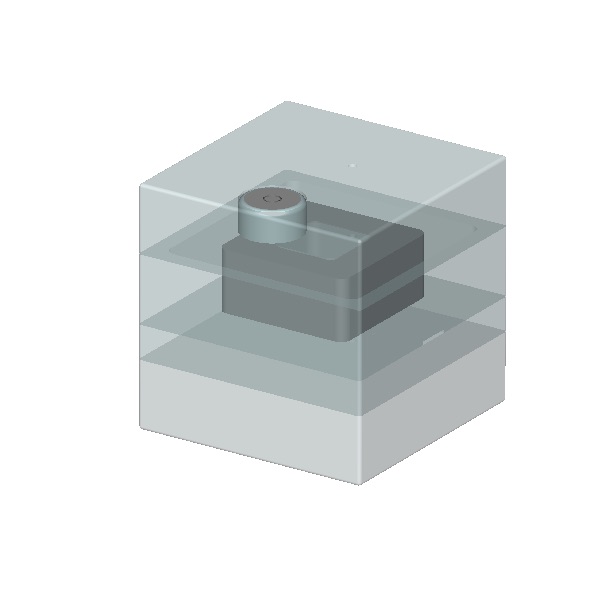

RT-smartCUBE-q   for device QA

• A compact and universal cubical phantom which fits inside the RT-smartIMRT, 7 x 7 x 7 cm

• Manufactured with the full precision of CNC machines with internal structural elements

• for tests of device specific parameters: resolution, contrast, slice thickness, distortion and more

• for CT, CBCT, MRI , PET with tests following DIN and ISO standards

RT-smartCUBE-q... phantoms are in the small 7 cm size in order to match any application in Imager QA including Stereotaxy.
The structural elements are taken from saveRAY products, which are manufactured by Euromechanics.
Made of RW3 or Acrylic we shrink the size of the original test object, made after DIN and ISO standards, to the new size without loosing functionality and precision.

• Integrated test objects: PMMA (tissue equivalent), PVC (bone equivalent) and Free air

•  Positioning aids: Level, center mark (linear)

•  Suitable for evaluation of image quality parameters: Contrast, DVT and MTF, Noise, homogeneity, artefacts
